Find the right container or pallet for your aircraft, route and payload
ULD Specifications
Filter by classification, maximum gross weight or aircraft type to see the dimensions, capacity and compatibility of each unit we own and manage.
22Showing all ULDs
Classification

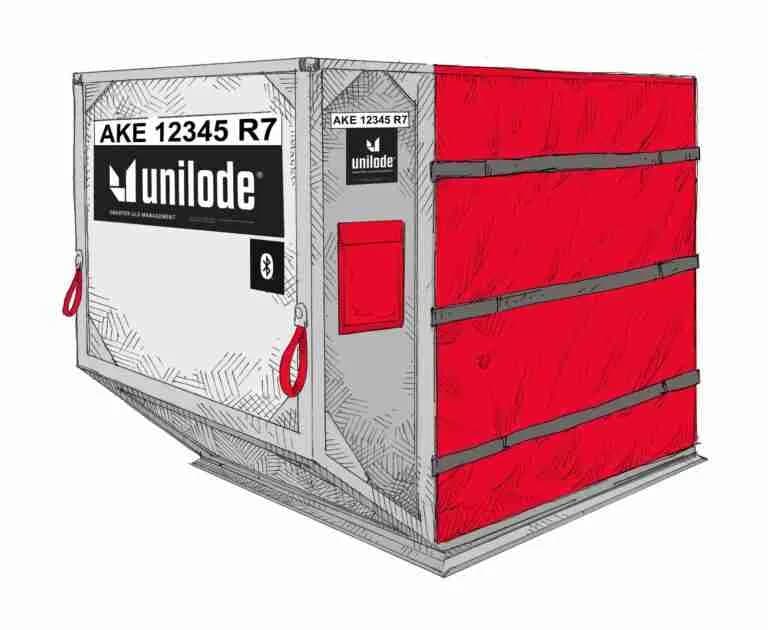

AKE, LD-3
Length156cm | 61.5in
Width153cm | 60.4in
Height163cm | 64in
Top201cm | 79in
Usable volume4.3m³ | 152ft³
Maximum gross weight1,588kg | 3,501lbs
Classification

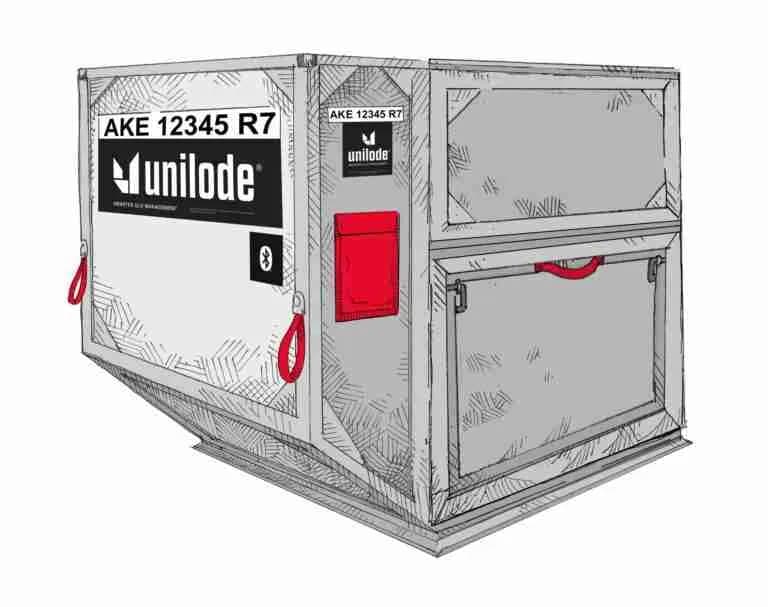

AKE, LD-3 Solid Door
Length156cm | 61.5in
Width153cm | 60.4in
Height163cm | 64in
Top201cm | 79in
Usable volume4.3m³ | 152ft³
Maximum gross weight1,588kg | 3,501lbs
Classification

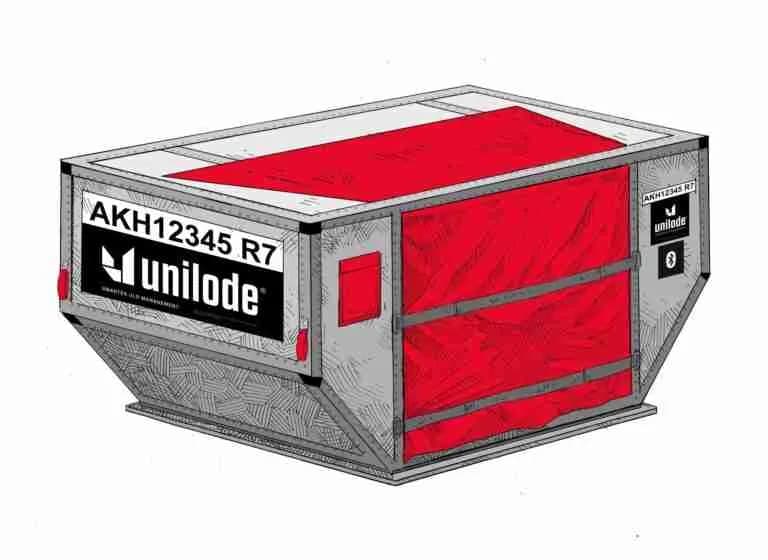

AKH, LD3-45
Length156cm | 61.5in
Width153cm | 60.4in
Height114cm | 45in
Top244cm | 96in
Usable volume3.7m³ | 131ft³
Maximum gross weight1,588kg | 3,501lbs
Classification

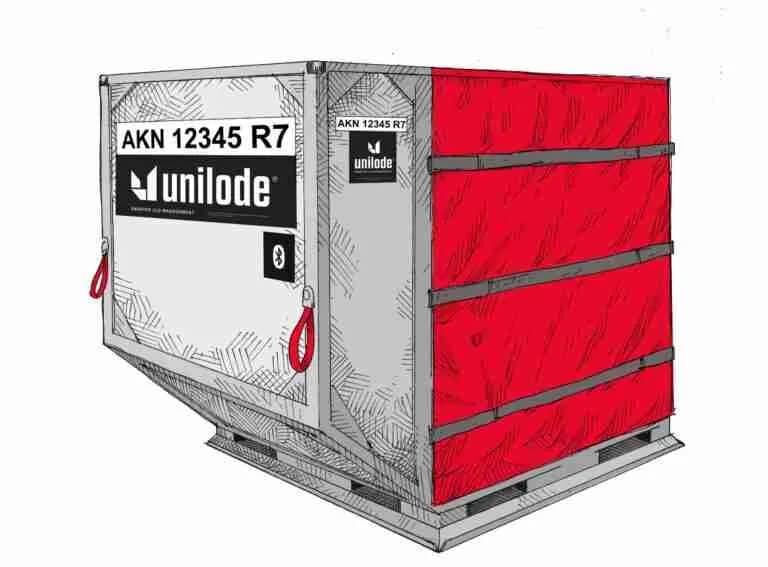

AKN, LD-3
Length156cm | 61.5in
Width153cm | 60.4in
Height163cm | 64in
Top201cm | 79in
Usable volume4.2m³ | 150ft³
Maximum gross weight1,588kg | 3,501lbs
Classification

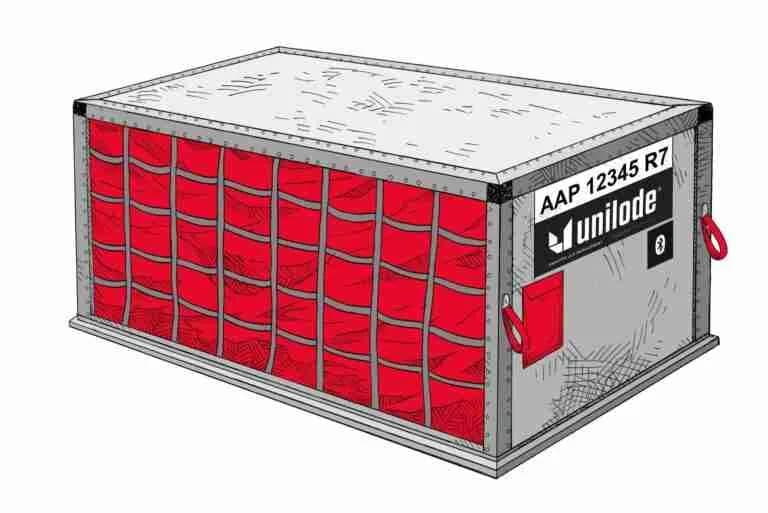

AAP, LD-9
Length318cm | 125in
Width224cm | 88in
Height163cm | 64in
Top318cm | 125in
Usable volume10.34m³ | 365ft³
Maximum gross weight6,033kg | 13,300lbs
Classification

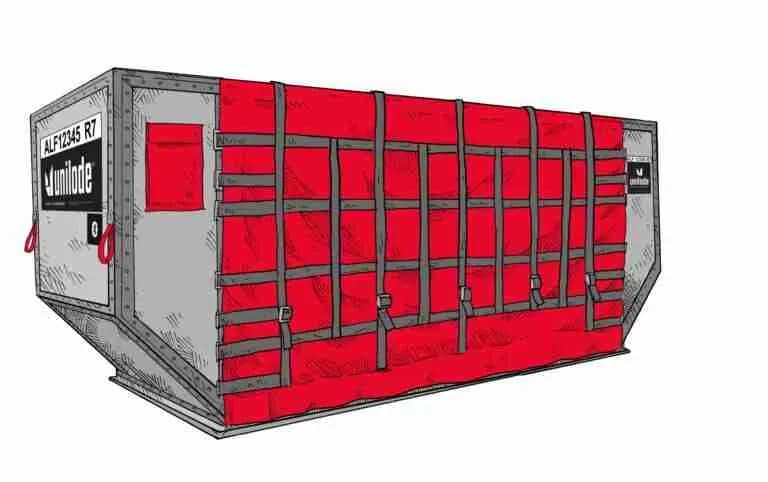

ALF, LD-6
Length318cm | 125in
Width153cm | 60.4in
Height163cm | 64in
Top406cm | 160in
Usable volume8.9m³ | 316ft³
Maximum gross weight3,175kg | 7,000lbs
Classification

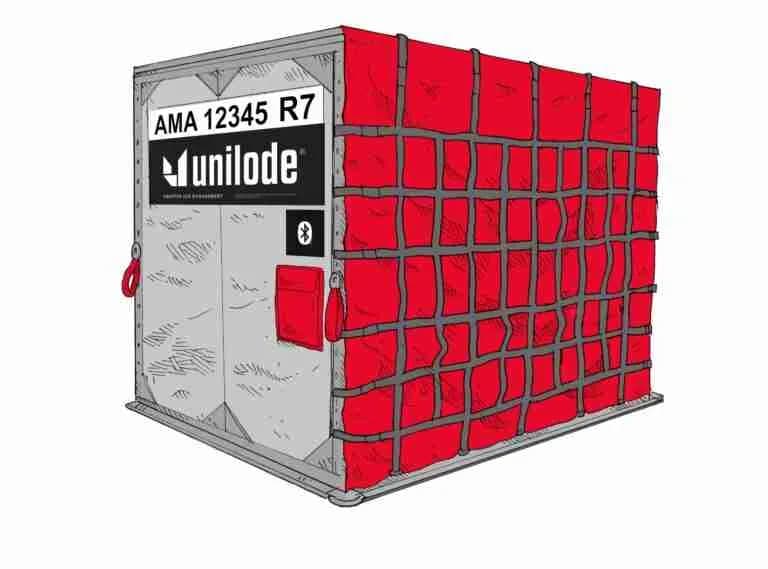

AMA, M1
Length318cm | 125in
Width244cm | 96in
Height244cm | 96in
Top318cm | 125in
Usable volume17.5m³ | 618ft³
Maximum gross weight6,804kg | 15,000lbs
Classification

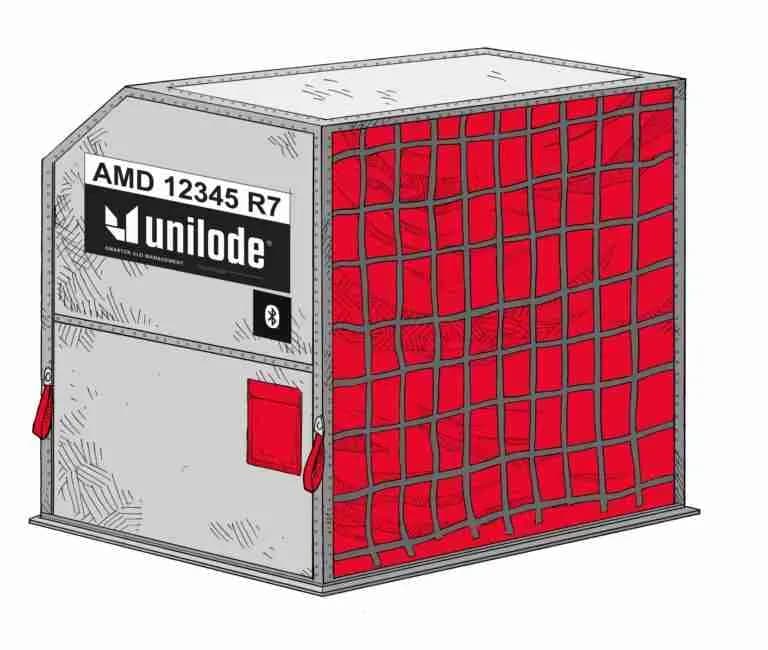

AMD, M1H
Length318cm | 125in
Width244cm | 96in
Height300cm | 118in
Usable volume19.9m³ | 703ft³
Maximum gross weight6,804kg | 15,000lbs
Classification

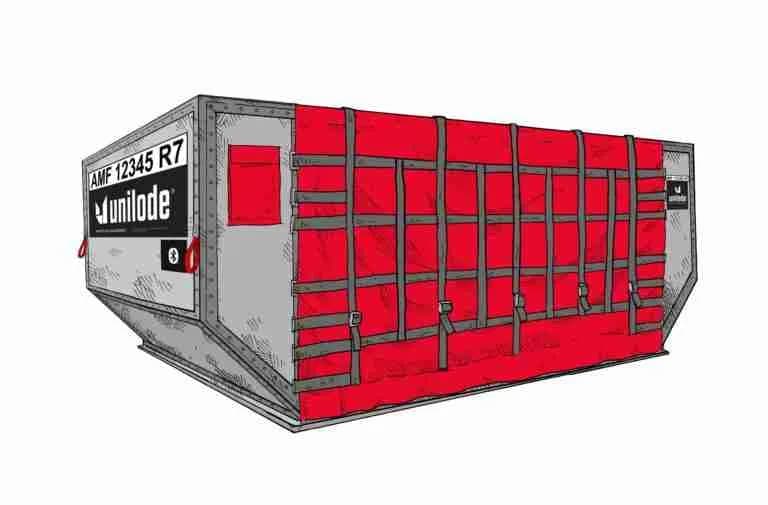

AMF
Length318cm | 125in
Width244cm | 96in
Height163cm | 64in
Top406cm | 160in
Usable volume14.5m³ | 512ft³
Maximum gross weight5,000kg | 11,023lbs
Classification

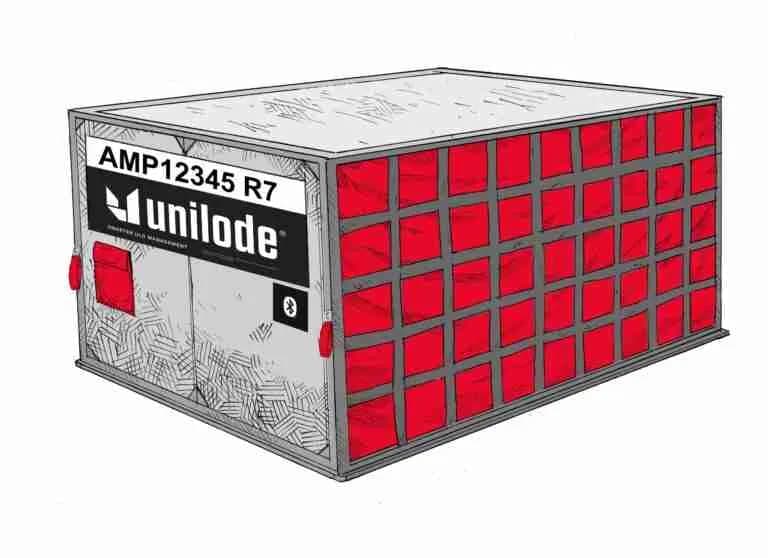

AMP, LD-9
Length318cm | 125in
Width244cm | 96in
Height163cm | 64in
Top318cm | 125in
Usable volume11.5m³ | 406ft³
Maximum gross weight6,804kg | 15,000lbs
Classification

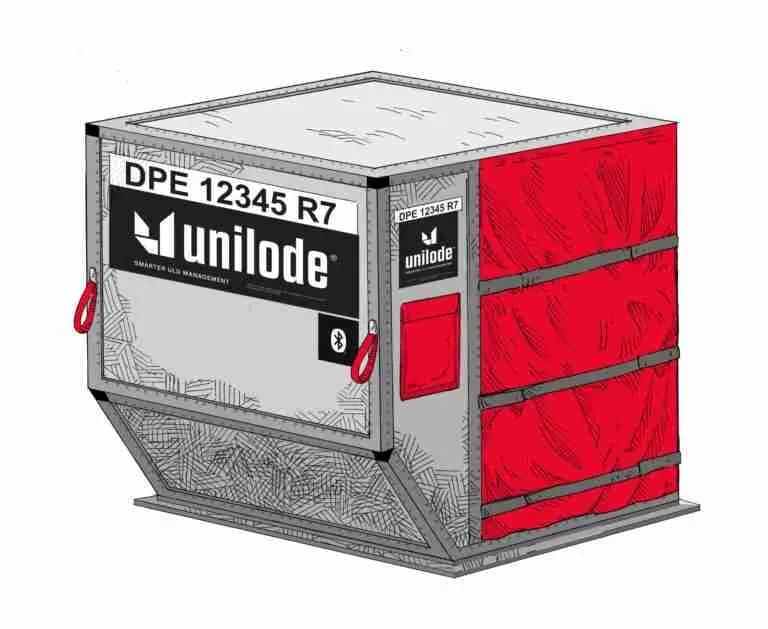

DPE, LD-2
Length153cm | 60.4in
Width119cm | 47in
Height163cm | 64in
Top156cm | 61.5in
Usable volume3.5m³ | 124ft³
Maximum gross weight1,225kg | 2,701lbs
Classification

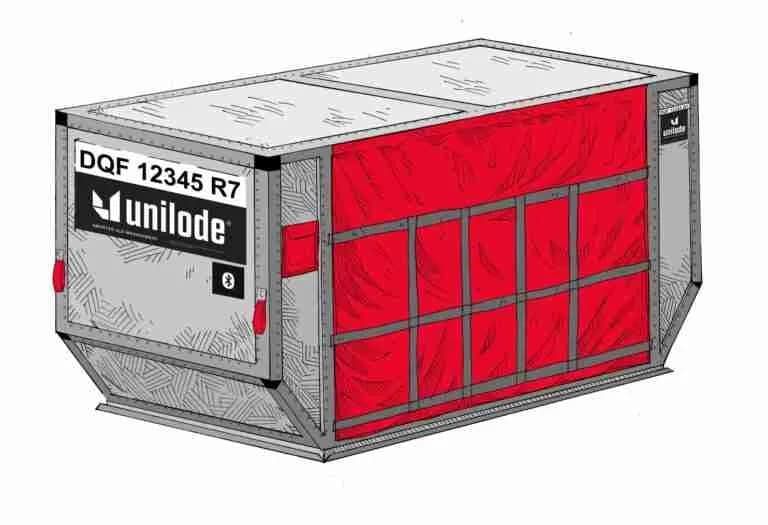

DQF, LD-8
Length244cm | 96in
Width153cm | 60.4in
Height163cm | 64in
Top318cm | 125in
Usable volume7.1m³ | 253ft³
Maximum gross weight2,450kg | 5,401lbs
Classification

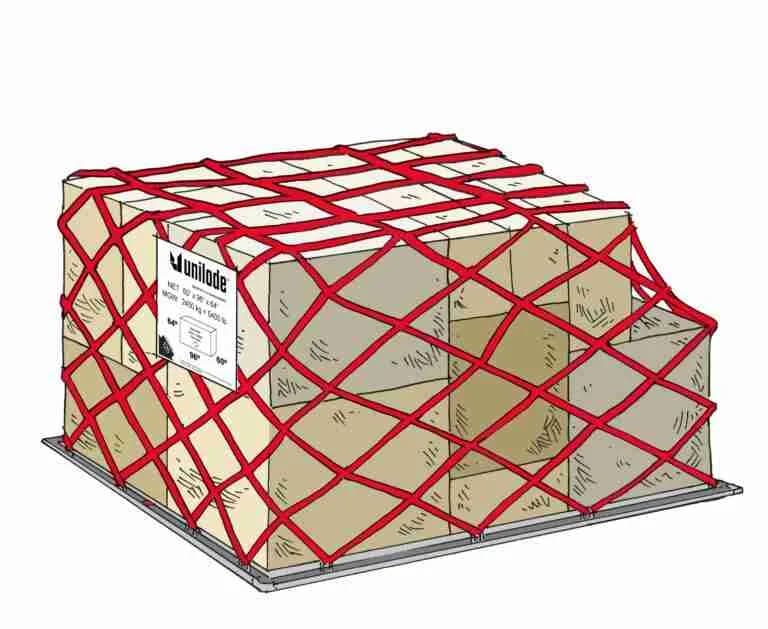

FQA, FQF
Length244cm | 96in
Width153cm | 60.4in
Height163cm | 64in
Usable volume6.66m³ | 238ft³
Maximum gross weight2,450kg | 5,401lbs
Classification

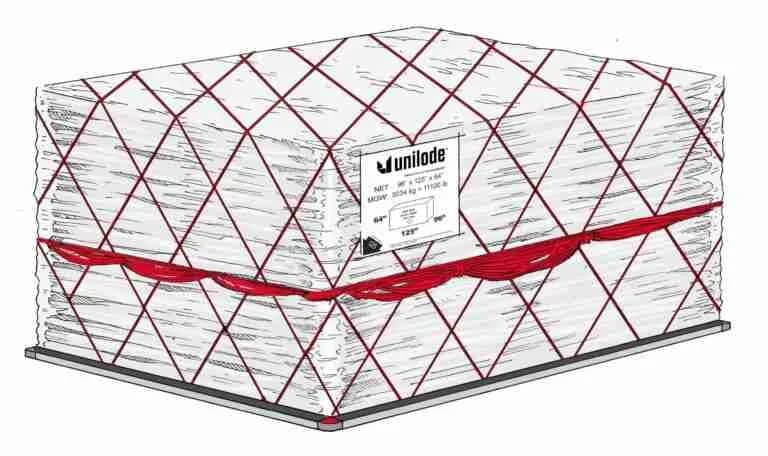

P6P, PMA, PMC
Length318cm | 125in
Width244cm | 96in
Height163cm | 64in
Usable volume11.5m³ | 406ft³
Maximum gross weight6,804kg | 15,000lbs
Classification

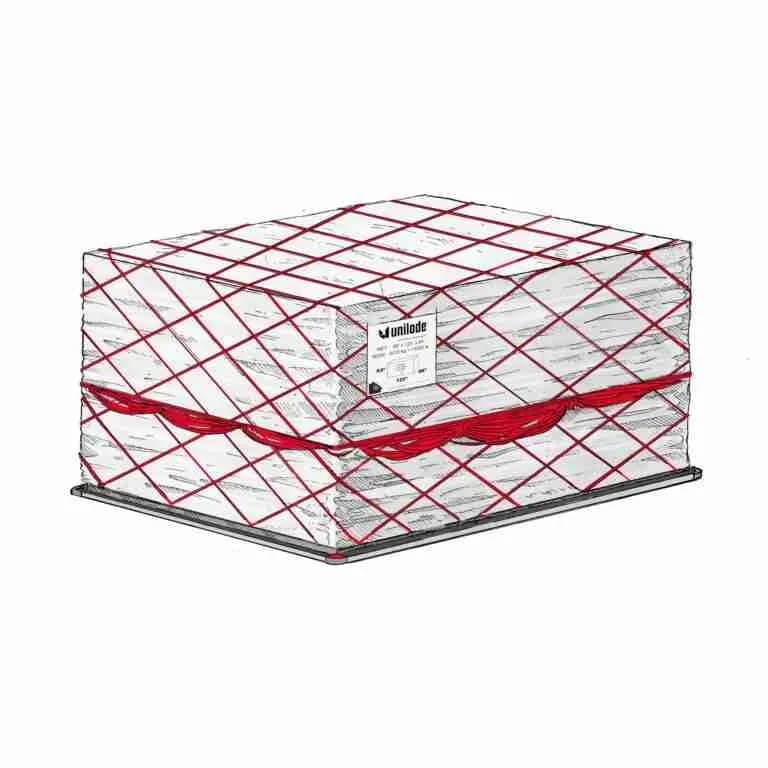

PAA, PAG, PAJ, PAP
Length318cm | 125in
Width224cm | 88in
Height163cm | 64in
Usable volume10.85m³ | 383ft³
Maximum gross weight4,626kg | 10,199lbs
Classification

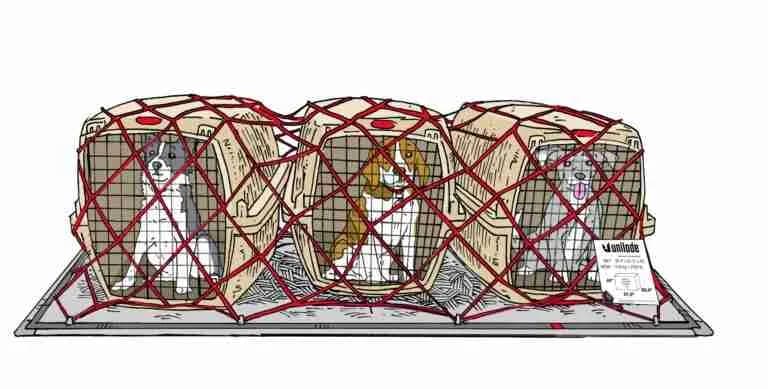

PKC
Length156cm | 61.5in
Width153cm | 60.4in
Height114cm | 45in
Usable volume3.54m³ | 125ft³
Maximum gross weight1,134kg | 2,500lbs
Classification

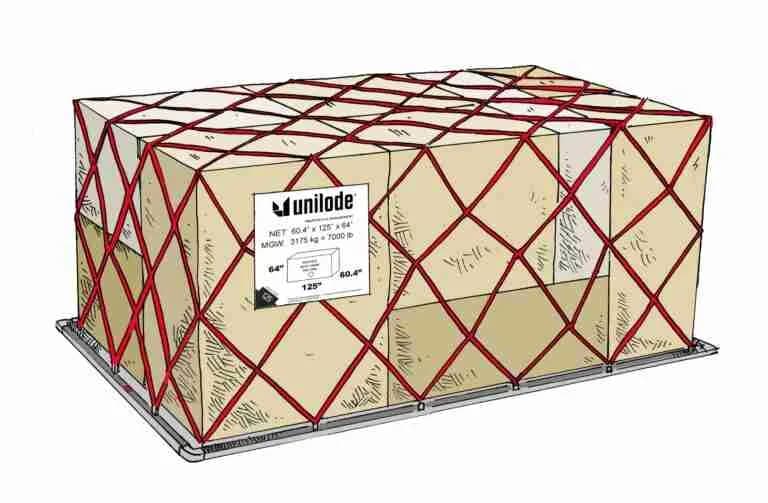

half pallet, PLA, PLB
Length318cm | 125in
Width153cm | 60.4in
Height163cm | 64in
Usable volume8.78m³ | 310ft³
Maximum gross weight3,175kg | 7,000lbs
Classification

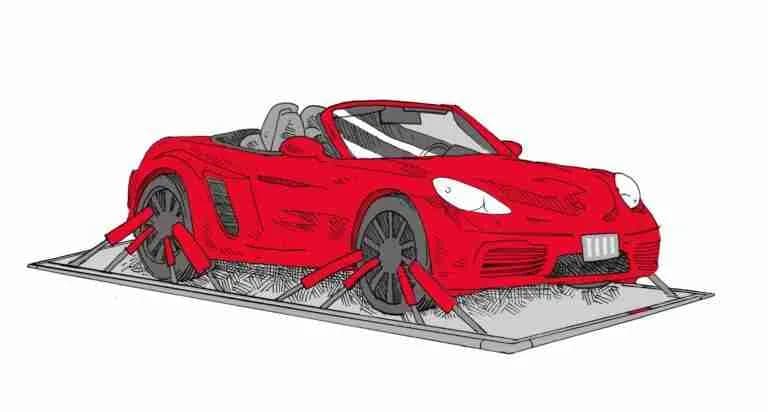

16ft pallet, PRA, PRF, PZA
Length498cm | 196in
Width244cm | 96in
Height244cm | 96in
Usable volume30.3m³ | 1,070ft³
Maximum gross weight11,340kg | 25,000lbs
Classification

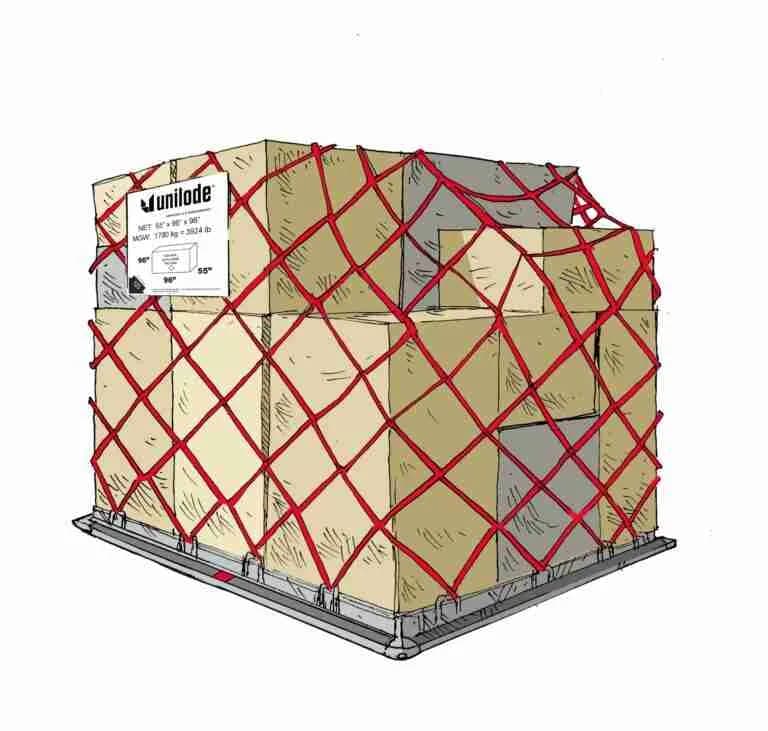

PYB
Length244cm | 96in
Width140cm | 55in
Height203cm | 80in
Usable volume6.09m³ | 215ft³
Maximum gross weight1,780kg | 3,924lbs
Classification

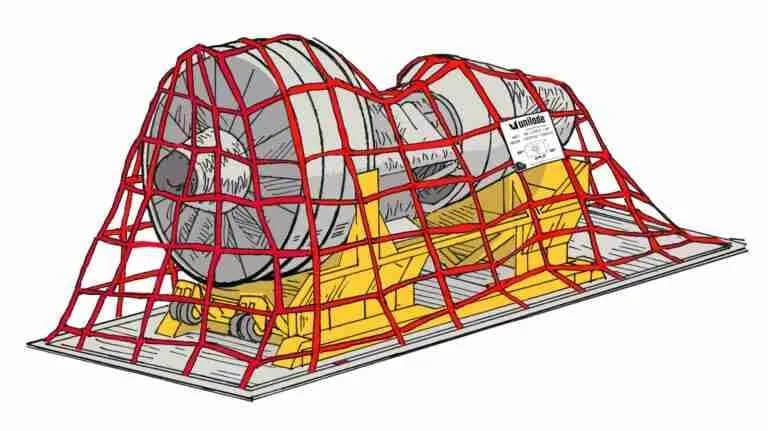

20ft pallet, PGA, PGE, PGF
Length606cm | 238.5in
Width244cm | 96in
Height244cm | 96in
Usable volume39.11m³ | 1,381ft³
Maximum gross weight13,608kg | 30,000lbs
Classification

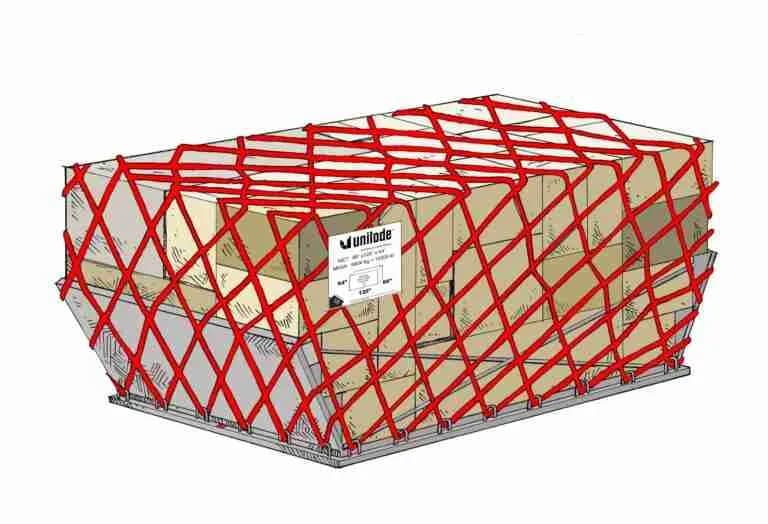

PMW, Wing Pallet
Length318cm | 125in
Width244cm | 96in
Height163cm | 64in
Usable volume14.8m³ | 522ft³
Maximum gross weight6,804kg | 15,000lbs
Classification

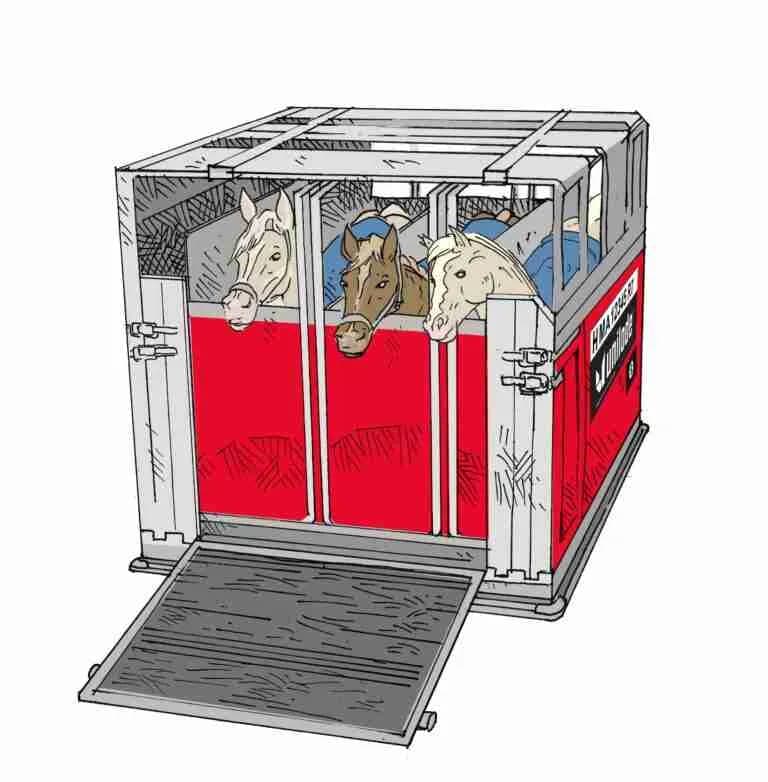

HMA, HMC, Horse Stall
Length318cm | 125in
Width244cm | 96in
Height234cm | 92.2in
Usable volume10.85m³ | 382ft³
Maximum gross weight6,804kg | 15,000lbs
